Orbea Rise M-LTD eBike

MSRP : USD 11,000.00

Price : USD 10,999.00




Rise is a machine designed to expand your trail experience and bring you closer to the moment.

Rise brings you nearer the sensation that less “e” delivers more “bike”. Whether you crave riding greater distances, reaching more epic locations, improving efficiency or increasing the frequency of your adventures, Rise beyond expectations and discover the new standard in MTB.

Rider Synergy Concept

RS is a new philosophy – a completely integrated system that becomes a reality when Power, Range, Interface and Weight are considered together.

A new riding experience that enhances the joy of traditional trail riding with smooth support that feels as natural and alive as your own body.

Minimalist, integrated and sleek with no bulky components to take you out of the moment, bringing you closer to the trails and the ride. An ebike designed specifically for the trail rider.


Creating the concept with Shimano

The idea of creating our own power plant for Rise was daunting, but we believed that this would be the only way to realize our goal of a complete RS system for trail bikes.

We had been looking for the best way to achieve this for a long time, so when Shimano shared the plans for their new EP8 motor, we quickly realized that this awesome drive unit offered us the perfect platform on which to build the RS Power concept.

Max torque 60NM
Max speed 25KM/H
Wight 2.6KG


Rise is intended for big rides. Rise features a modular battery solution that provides up to 612wh, combining a very light and compact 360wh main battery integrated in the down tube with a patent-pending 252Wh range extender.

Main battery:

Over 4 hours ride time

RS Range Extender:

Extra 70% ride time


Sleek and expandable.

We have embraced data collection with cycling computers and smartphones but often stop short of attaching large displays on our handlebars or top tubes.

Switch & EW-EN100.
RS Garmin IQ.


The RS Motor, Battery and Electronics are lighter than other eBike systems by over half. Rise can weight as little as 16.5 kg or 36.3 lbs.

The beauty of the RS system is that assistance torque and power is provided within a range where normal, high-quality trail bike components can be used.

OMR Frame

2300g without shock

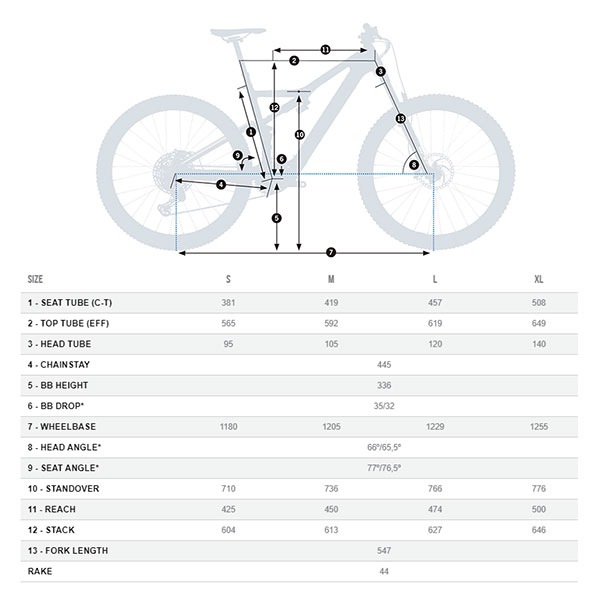

Orbea Rise M-LTD Geometry
FRAME Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
SHOCK Fox Float DPS Factory 3-Position Adjust Evol Kashima custom tune 210x55mm
FORK Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
CRANKSET e*thirteen e*spec Direct Mount 32T Boost
CRANK e*thirteen Race Carbon
HEADSET Acros Alloy 1-1/8 - 1-1/2" Integrated
HANDLEBAR Race Face Next 35 20mm Rise 760mm
STEM Race Face Turbine R 35mm interface
SHIFTERS Shimano XTR M9100
BRAKES Shimano XTR M9100 Hydraulic Disc
ROTORS 180mm Front /180mm Rear
CASSETTE Shimano XTR M9100 10-51t 12-Speed
REAR DERAILLEUR Shimano XTR M9100 SGS Shadow Plus
CHAIN Shimano CN-9100
WHEELS Race Face NEXT-SL TLR 15/110mm IS
TYRES Maxxis Rekon 2.60" 120 TPI 3CMaxxTerra Exo TLR
TYRES Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
SEATPOST Fox Transfer Factory Kashima Dropper 31.6
SADDLE Selle Italia SLR Boost SuperFlow L Carbon Keramic Rail Ø7 x 9 mm
CHAINGUIDE Orbea Rise chainguide
MOTOR Shimano EP8-RS
BATTERY Orbea RS Internal 360Wh
DISPLAY Shimano EW-EN100 Junction
CHARGER Orbea RS Charger (36V-2A)
REMOTE Shimano E7000 switch unit for assist
