The new front chainrings feature a new surface treatment that preserves
their durability over time and a new tooth shape, designed to facilitate
faster chain engagement during the derailleur action. There are seven
configurations available, up to a 16-tooth gear spacing, to meet the needs of
every cyclist:
45/29, 48/32, 50/34, 52/36, 53/39, 54/39 and 55/39.
A truly wide range that, combined with the four cassettes, represents the
most complete and well-structured offer available on the market today.

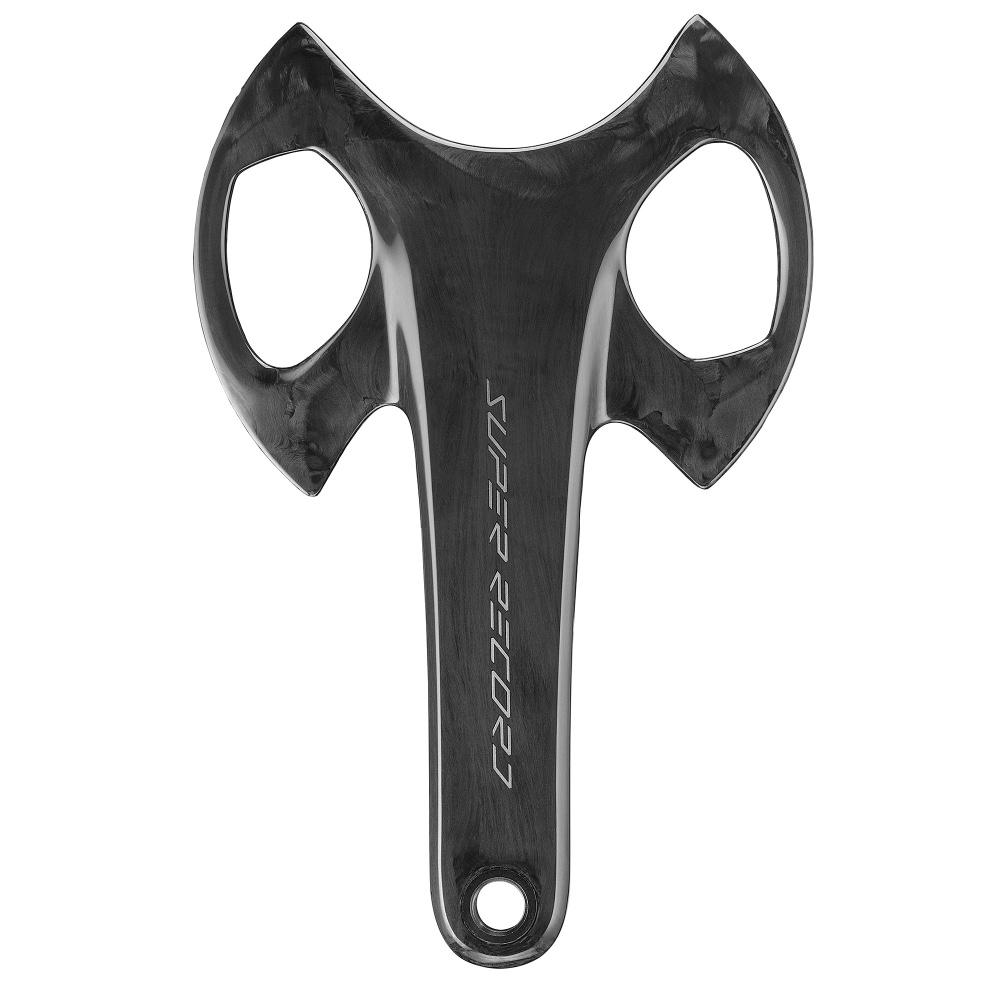

The cranks, in exposed carbon fiber, are available in the lengths of 165 mm,
170 mm, 172.5 mm and 175 mm and have a Q Factor of 148.5 mm. The two
titanium bottom bracket semi-axles are integral with the crank arms (Ultra
Torque system).
To ensure greater flexibility, cranksets and chainrings will be available
separately on the market. The entire system is available with or without
power meter. The strength of Campagnolo’s HPPM power meter, “High
Precision Power Measurement”, is the absolute precision of its continuous
detection every 5 milliseconds, thanks to sixteen sensors that crossreference
the power in N/m in real time - detected with multiple sequential
readings - with the angular velocity of the integrated gyroscope. This
process provides unequivocal accuracy of results and stands as a
benchmark on the market.
NEW ORDERING & ASSEMBLY PROCEDURE
Individual crankarms & chainrings
Chainring sets are now sold separately from the crankarms, this way
it’s much easier to make sure you have the correct combination in your
warehouse.
We strongly recommend only using the fixed combination of chainrings.
Any other combination might result in poor performance.
CRANKARM OPTIONS
- 165mm
- 170mm
- 172.5mm
- 175mm
CHAINRING OPTIONS
- 45/29
- 48/32
- 50/34
- 52/36
- 53/39
- 54/39
- 55/39
