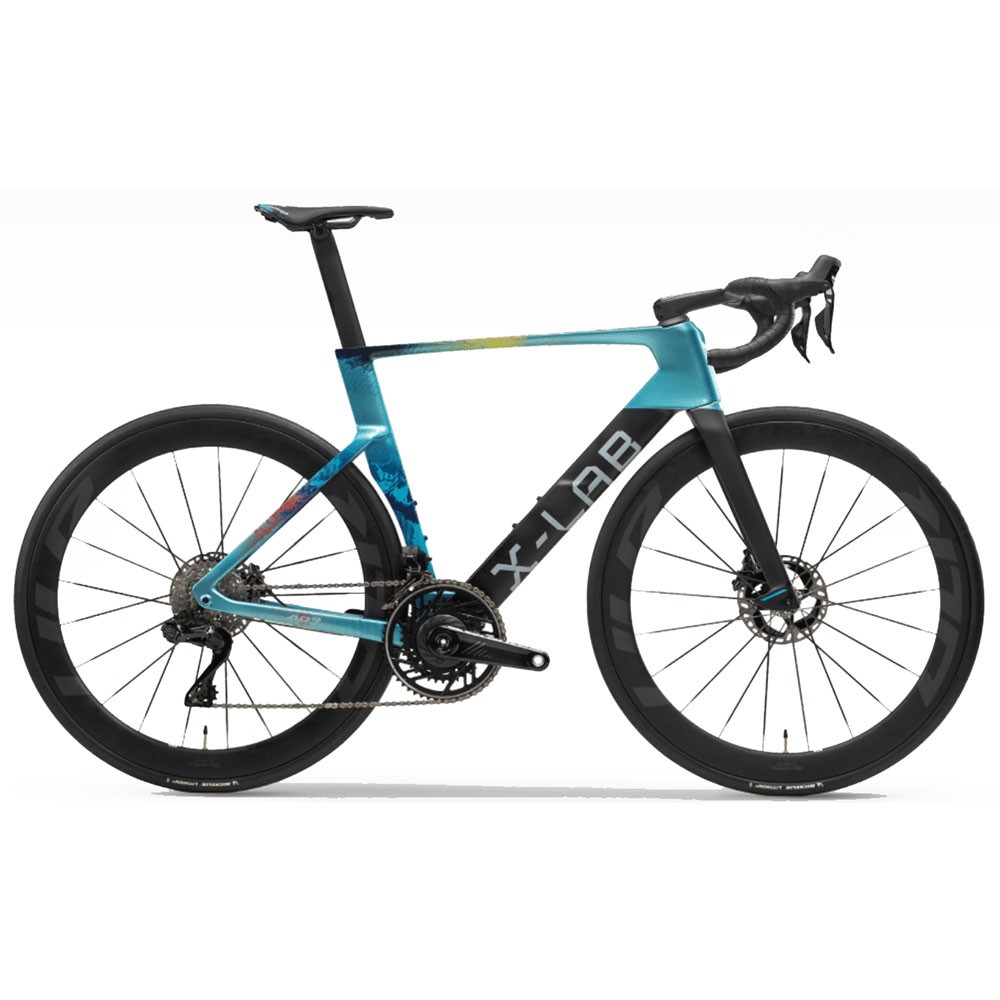

X-Lab AD9 Road Bike

MSRP : USD 12,000.00

Price : USD 8,000.00

color*
frame*

sm / Astana

Units

WorldTour championship aerodynamics, engineering to stay ahead.

XDS carbon frameset with Toray T1100 | Full bike 6.8kg/14.99lbs

CFD + wind tunnel engineered aerodynamics for ultra-low drag performance

Branta carbon crankset with integrated powermeter + Apple Find My anti-theft technology

Shimano Dura Ace Di2 groupset

Branta C50 ULR carbon wheelset with carbon spokes | 1,230g

Aero carbon seatpost

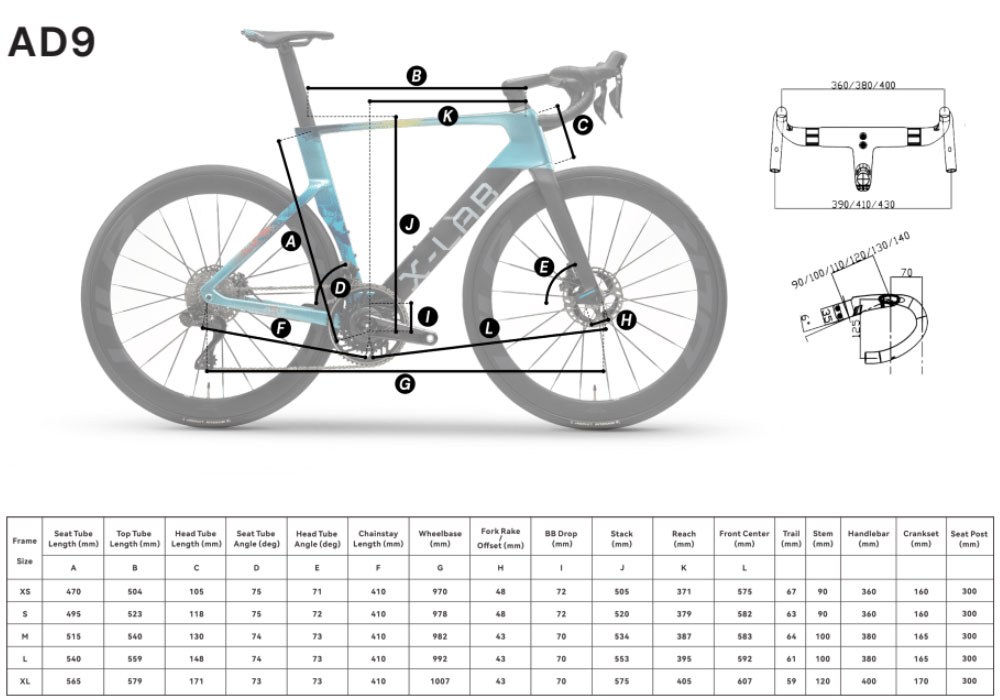

X-Lab AD9 Geometry
cranks: Branta Carbon Powermeters Crankset, 29mm Aluminum Spindle
chainrings: Branta 52-36t
bottom bracket: T47 29mm
brakes: Shimano Dura Ace BR-R9270
rotors: Shimano RT-MT900, F: 160mm R: 140mm
shifters: Shimano Dura Ace ST-R9270
battery: BT-DN300
derailleur - front: Shimano Dura Ace FD-R9250
derailleur - rear: Shimano Dura Ace RD-R9250
chain: Shimano XTR CN-M9100
cassette: Shimano Dura Ace CS-R9200
wheels: Branta C50 ULR, Carbon Spokes
tires: Michelin Pro 5 700x28c
handlebar/stem: Branta Carbon Integrated
bar tape: Fizik
seatpost: XDS Carbon, Aero Profile
saddle: Prologo Nago R4 PAS, Carbon Rails(Team Replica)
weight: 6.82 kg / 15.03lbs (Size L)
size options: XS / S / M / L / XL
