Branta
Branta C50 UL Wheelset
Branta C50 UL Wheelset
Couldn't load pickup availability

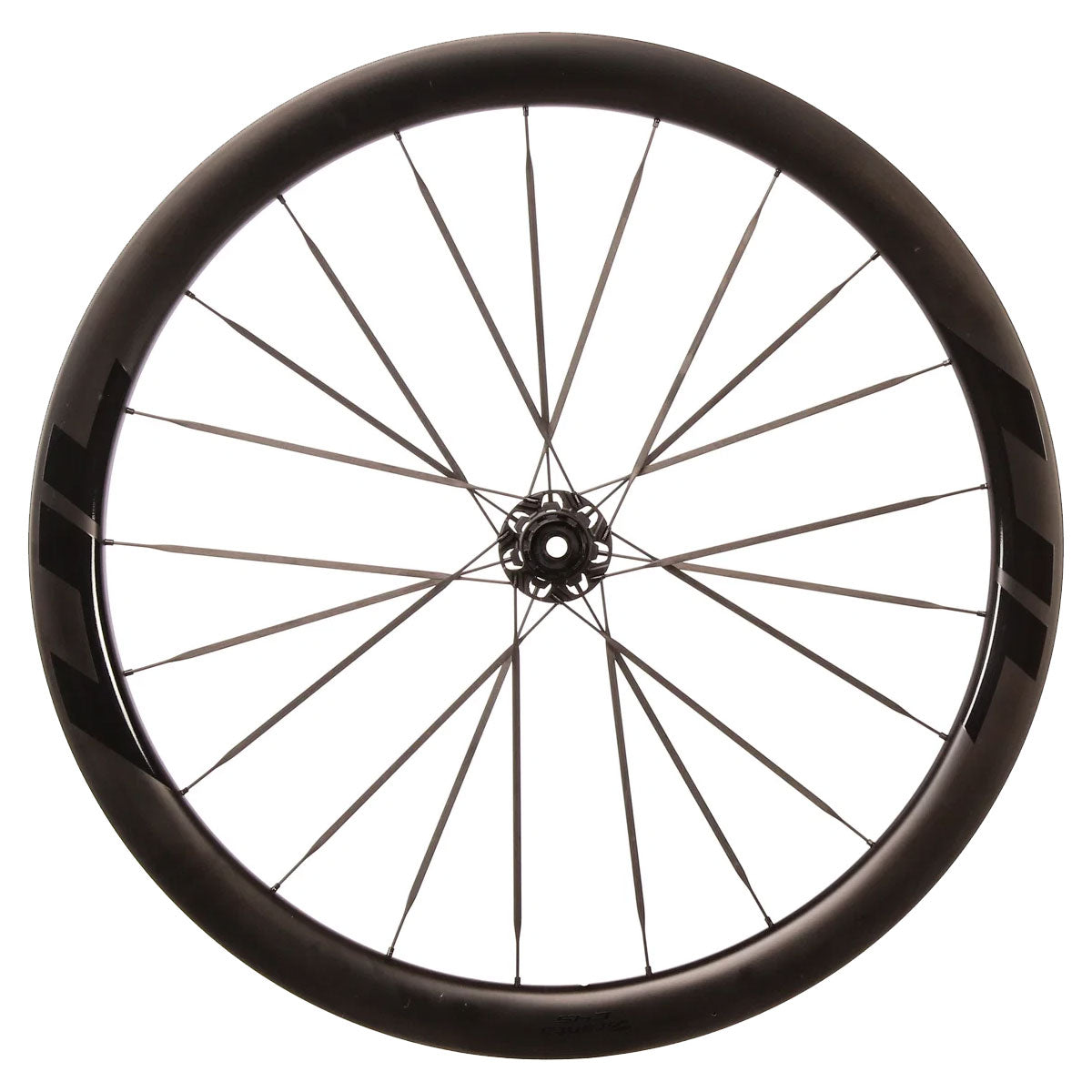

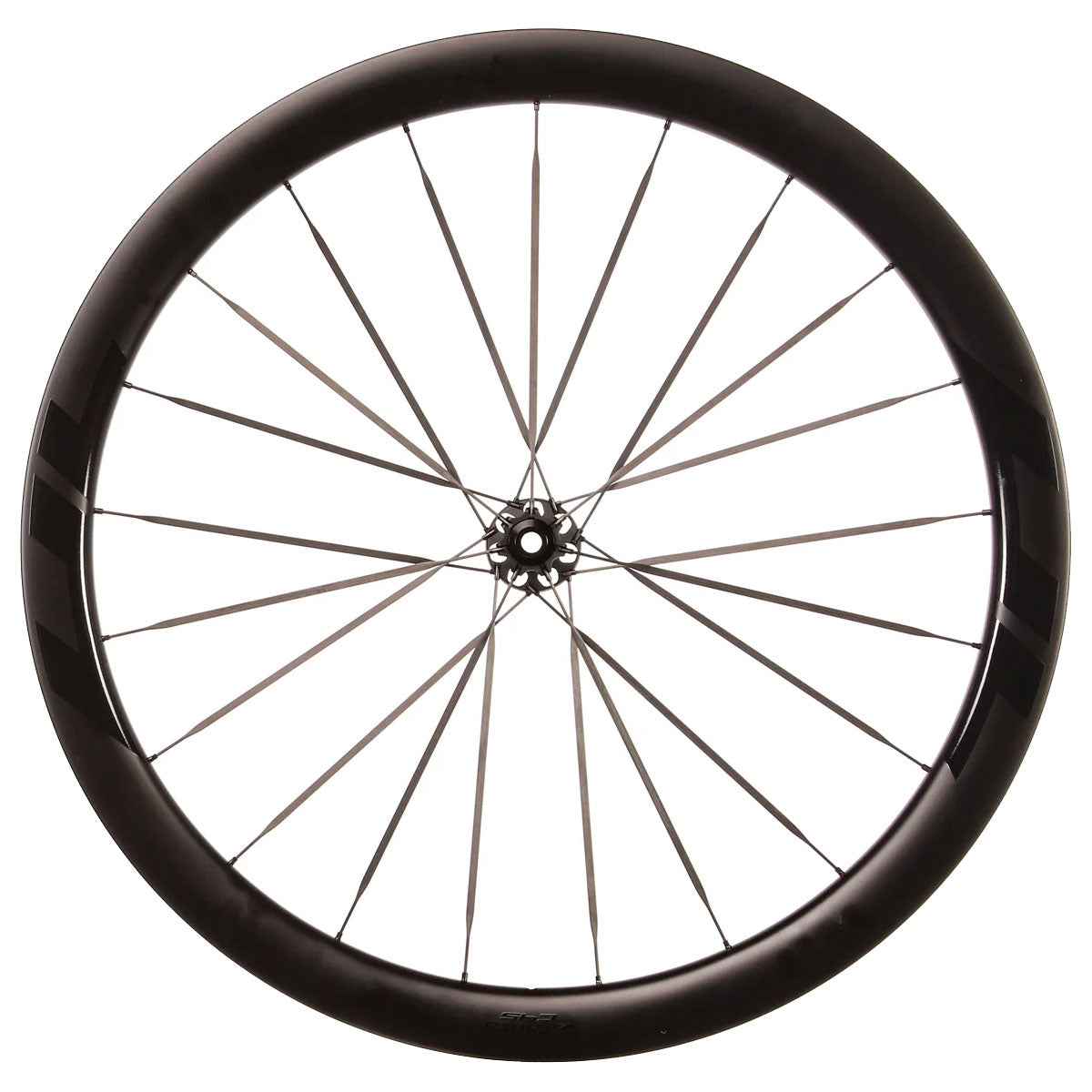

Engineered for speed, precision, and reliability, the Branta C50UL Carbon Wheelset delivers exceptional performance for riders who demand the best. Crafted from a blend of T800 and T700 high-modulus carbon fibre, these wheels achieve the perfect balance between lightweight agility and robust strength—ideal for road racers, endurance riders, and performance-driven cyclists.
Key Features:
-
Material: T800 + T700 carbon fibre for strength and lightness
-
Rim Width: 30mm (outer) / 22mm (inner)
-
Tubeless Ready: Yes (max pressure 100psi tubeless / 120psi with tube)
-
Tyre Compatibility: 25–35mm

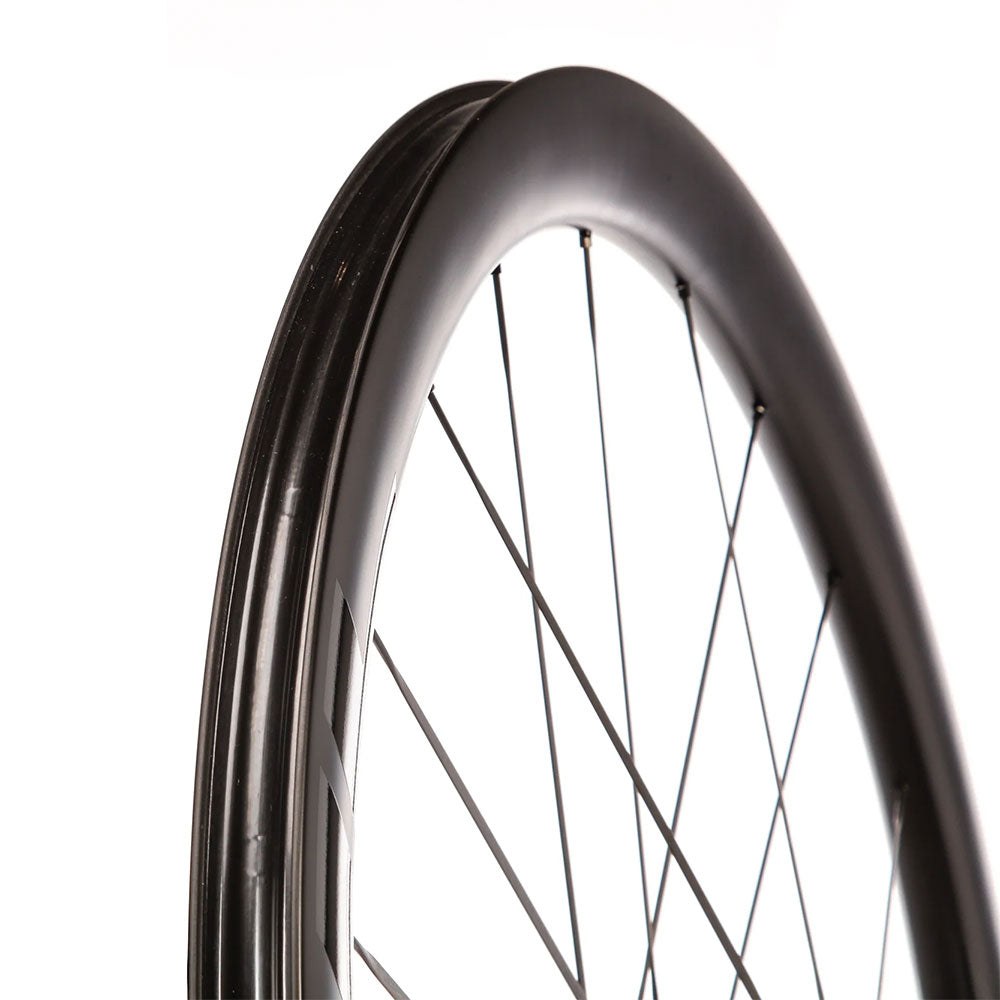

At just 1350g, the C50UL offers incredible climbing efficiency and snappy acceleration without compromising stiffness. The 50mm deep-section profile enhances aerodynamic performance, cutting through the wind with ease, while the 30mm outer width (22mm internal) provides optimal tyre support for 25–35mm tyres—perfect for both speed and comfort.

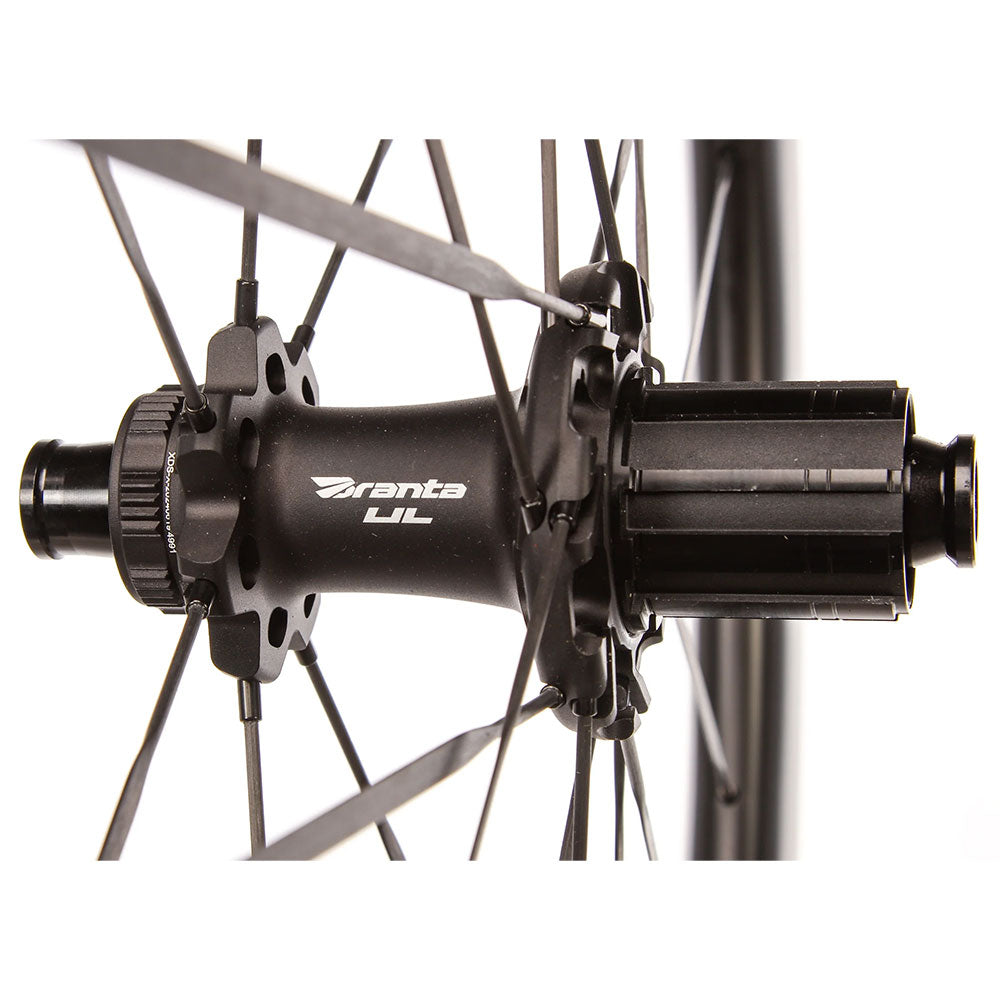

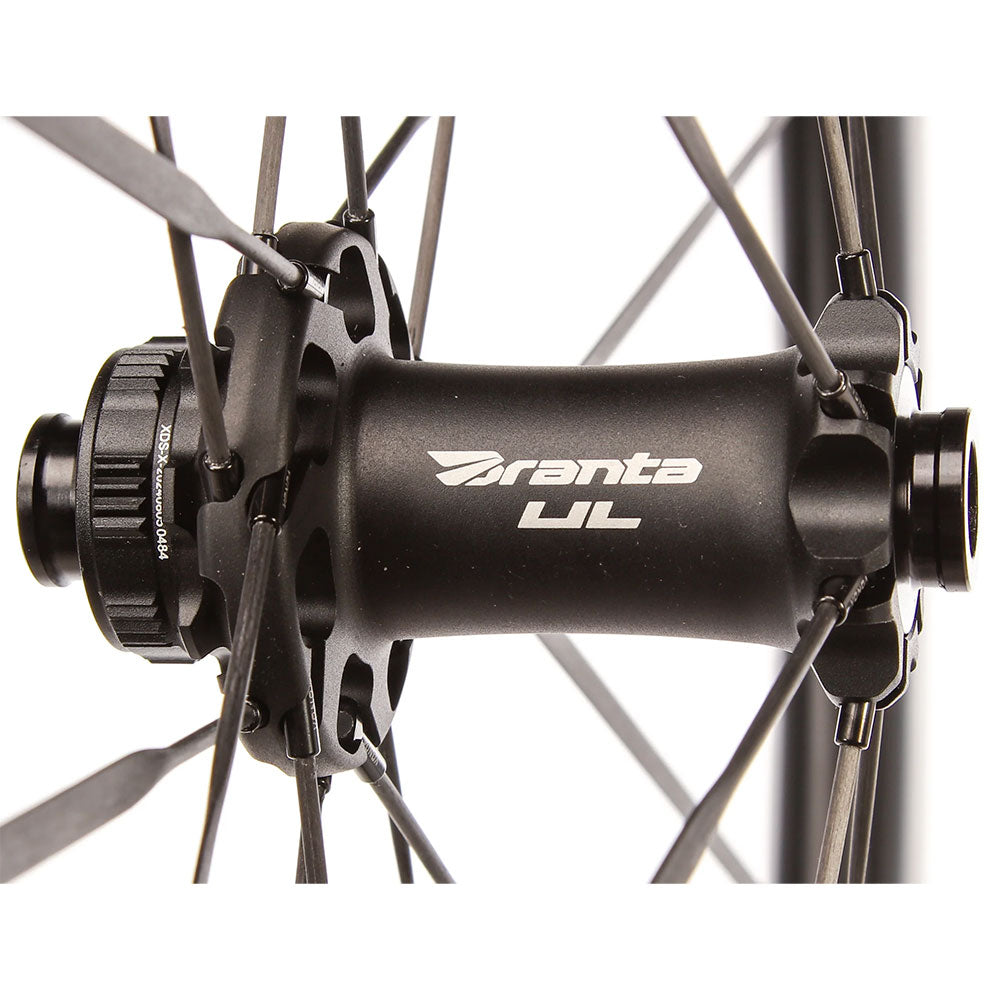

Built with carbon fibre spokes and Branta’s ultra-high flat air-breaking spoke design, this wheelset ensures reduced drag and superior responsiveness. The Taiwan Hepu high-precision bearings and planetary gear ratchet hub system (36T) deliver smooth power transfer and long-lasting reliability. Compatible with both tubeless and clincher setups, and available in black or black/silver, the C50UL is built for riders who want cutting-edge technology that performs as good as it looks.
The Branta C50UL Carbon Wheelset combines cutting-edge materials, aerodynamic efficiency, and precise engineering—perfect for riders chasing every performance gain on road or race day.
Specifications
Specifications
MaterialT800 + T700 Carbon Fiber
Width - Outer30mm
Width - Inner22mm
TubelessYes
Max Tyre Pressure120psi (Inner Tube) - 100psi (Tubeless)
Supported Tyre Size25mm-35mm
ColorBlack & Black/Silver
Spoke MaterialCarbon Fiber Spokes
Shape6.5
Hub Body Material6.5 Ultra-High Flat Air-Breaking Spokes
Knitting2:1 Front & Rear Wheel
Quantity21 Spokes Front & Rear
FreehubHG (XDR Optional)
RatchetPlanetary Gear Structure - 36T
BearingTaiwan Hepu High-Precision & High-Strength Bearing
Lock Nut SpacingFront: 100mm - Rear: 142mm
Fixing Method12mm E-THRU Thru Axle
Brake TypeMedium Lock Disc Brake System
Wheel Load110kg
Weight1350g
